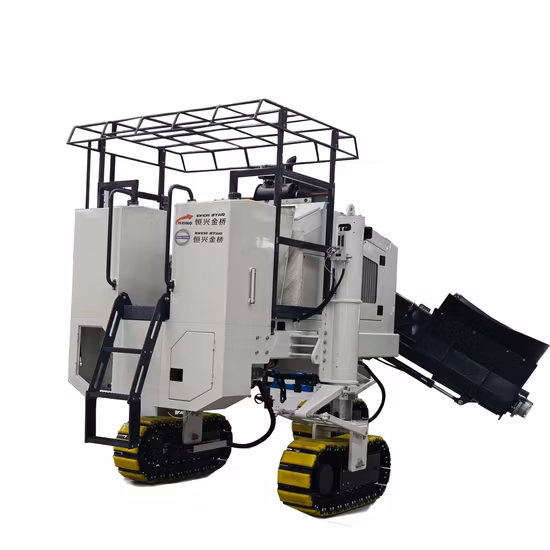

Hot Selling Road Curbing Machine with Great Price Bull Float Vivrating

Basic Info.

Model NO.	NC1200
Product Capacity	>400t/h
Certification	ISO9001: 2000, CE
Condition	New
Maximum Paving Width	60cm
Power	36.8kw/2400rpm
Diesel Tank Capacity	90L
Hydraulic Tank Capacity	110L
Maximum Paving Height	60cm
Total Height	310cm(Transport 200cm)
Total Length	420cm
Paving Speed	0~15m/Min
Travelling Speed	0~30m/Min
Maximum Climbing Ability	≥20%
Transport Package	Wooden Box
Specification	slip paver
Trademark	xuzhou hengxing
Origin	Jiangsu Xuzhou
Production Capacity	500

Product Description

Products Description

NC600 is a multi-functional concrete slip-form paver independently developed and produced by Xuzhou Hengxing Jinqiao MachineryTechnology Co.,Ltd., it can realize the configuration of side mold. It is widely used in small kerb, small ditch, small shoulder and other construction fields, replacing the traditional technology to greatly improve the construction quality and speed of the above cement and concrete structures.The machine has large power reserve, full electronic control, full hydraulic drive, the front track drive to walk, the back four rubber wheels driven, flexible and light. Equipped with automatic steering and automatic leveling control system, the machine can complete technological procedures of concrete structures by one time like vibration, paving, forming etc.

Hot Selling Road Curbing Machine with Great Price Bull Float Vivrating

Introduction :1. The sliding construction has characteristics such as high construction speed, high degree of mechanization, continuity andbeautiful and straight linear, compared with the manual mode and the traditional process of precast after installation, usingNC600 kerbstone slip form paver has more advantages in reduction of labor intensity and material loss, quality control andimprove the efficiency of construction, after construction the overall stability is much stronger.2. With the amplification of market demand, the good and bad slip form paver mixed together, the low-end products causedirreparable damage to the industry, even resulting in partial regional market government issued a document banning the use ofsliding mode process. In order to promote the healthy development of the industry, improve the influence of sliding formconstruction, EVERSTAR optimizes the product and specially enters into the small sliding form paver market, for kerb stone,low wall, sink, shoulder and other small structures construction, we make the ordinary labor team with a 50 loader capitalinto the sliding form construction industry. We can improve the construction precision and efficiency of mini slipform paver,make the labor team accumulation wealth fast and the machine is known as the "money grab".General parameters of host machineBasic parameters:Paving speed 0~15m/minTravelling speed 0~30m/minMaximum climbing ability ≥20%
Engine: Model Yuchai 30D2G0-1000000WAPower 36.8kW/2400rpmType Naturally aspiratedDiesel tank capacity 90L
Hydraulic system:Hydraulic pump: imported brandHydraulic oil cooling: large size radiator, forced air coolingHydraulic oil filter: equipped with brand filter, the maximum filtration accuracy up to 10μmHydraulic tank capacity: 110L
Electric control system:The color graphic display of the operation table, with the functions of state display, warning and alarm, system voltage is 12V.Electronic automatic control of steering, longitudinal and transverse slopes, our machine equipped with two longitudinal slopesensors, one transverse slope sensor and one steering sensor.
Vibration compaction system:Type: US imported, square head housing, hydraulic driveFrequency: 0~167Hz stepless adjustableQuantity: standard configuration two vibrating oil lines and two hydraulic vibrators
Flush systemType: High pressure flushing machine with flushing nozzle,the flushing pressure can reach 5MPaWater tank capacity: 158L
Walking deviceIt is composed of variable pump, hydraulic valve, hydraulic motor, reducer, crawler and control system.Type: walking by single track drive,walking speed stepless adjustableTrack size: 134cm length, 30cm width and 51cm height
Side mold parameters
Basic parameters:Maximum paving width 60cmMaximum paving height 60cmDimensions and weight: Total length 420cmTotal width 240cmTotal height 310cm(Transport:200cm)Weight 4000kgFeeding system:Drive: Direct drive by hydraulic motor for higher torque, speed,and reliabilitySpecifications: Length 160cm, diameter 30cmDriving wheel speed: 0~100rpmMold:Customize all kinds of molds to meet different project requirements.Note: Our company reserves the right to adjust the parameters mentioned above. Characteristic:Energy conservation and environmental protection:* Engine: Yucai 30D2G0-1000000WA,high pressure common rail fuel injection control, conforms to the national 3 Stage emissionstandard, the power is large and the fuel consumption is low. Comprehensive fuel consumption 18.8L /h, full load fuelconsumption 30.3L/h;* Hydraulic system: load sensitive variable control, oil supply according to the actual load and speed, which is energy saving.Electrical control system:The operation table adopts friendly wide-screen LCD display, the working state of the whole machine is clear, the operationplatform can be rotated and disassembled, easy to operate during construction.Full hydraulic drive system:Imported brand load sensitive variable pump, energy saving, reduce the temperature rise of the hydraulic system;Hydraulic valve selection of imported brands, superior and reliable performance;Valve block structure is compact and easy for maintenance;The hydraulic vibrator is imported from WYCO, the performance is stable and reliable.About USXuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as SOILMEC, CMV, MAIT, IMT, XC/MG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliablequality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.we has always followed our survival principle that "strives for the survival by quality, development through reputation", and our service tenet "your demand is our demand". Through continuous technological innovation we try to build our global brand.With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
FAQ1.What is the main function of our paver machine? Ans.: It has different models used for all kinds of paver, it is the best choice for paver construction. 2.What is the warranty of our machine? Ans.:Our main machine enjoys a 1 year warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation. 3.What is the lead time and shipping method? Ans.:Usually the lead time is 20 days, and we send the machine by sea. 4.What kinds of payment terms do we accept?Ans.:T/T or L/C at sight...In order to promote the healthy development of the industry, improve the influence of sliding formconstruction, EVERSTAR optimizes the product and specially enters into the small sliding form paver market, for kerb stone,low wall, sink, shoulder and other small structures construction, we make the ordinary labor team with a 50 loader capitalinto the sliding form construction industry. We can improve the construction precision and efficiency of mini slipform paver,make the labor team accumulation wealth fast and the machine is known as the "money grab".
